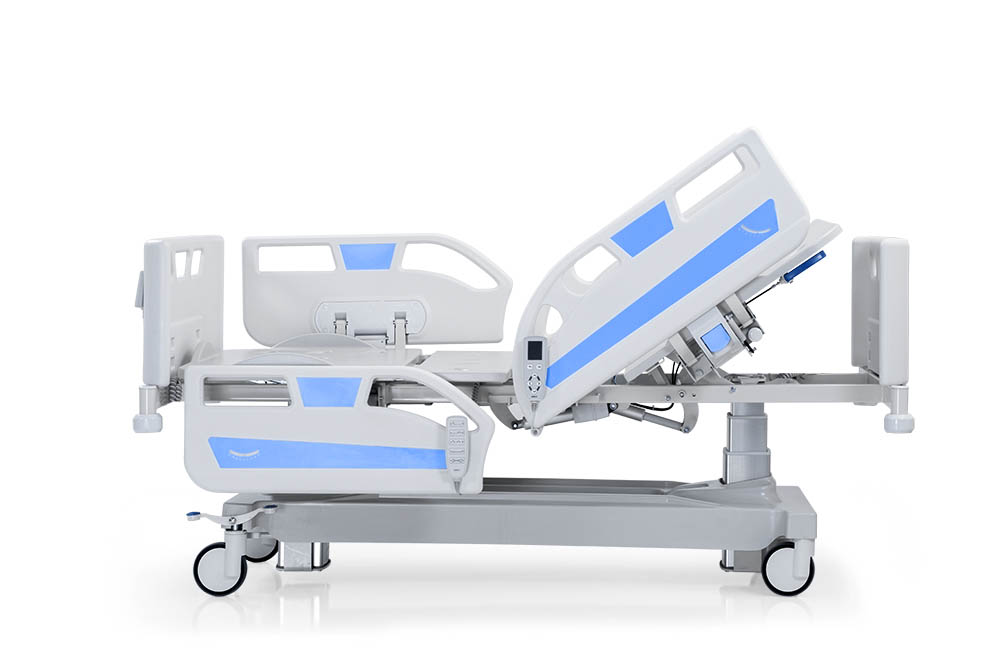

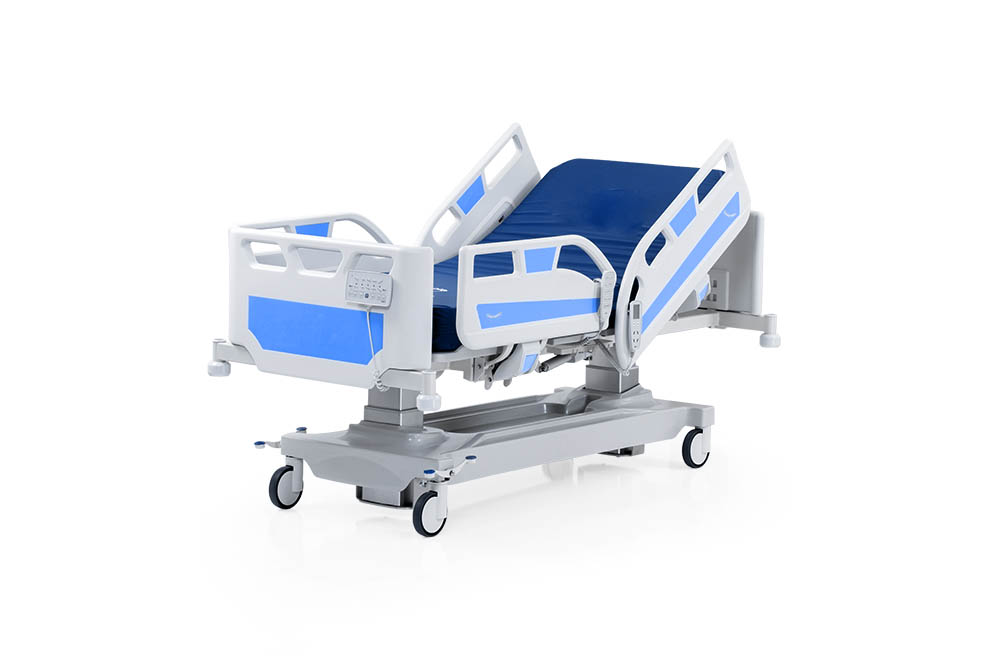

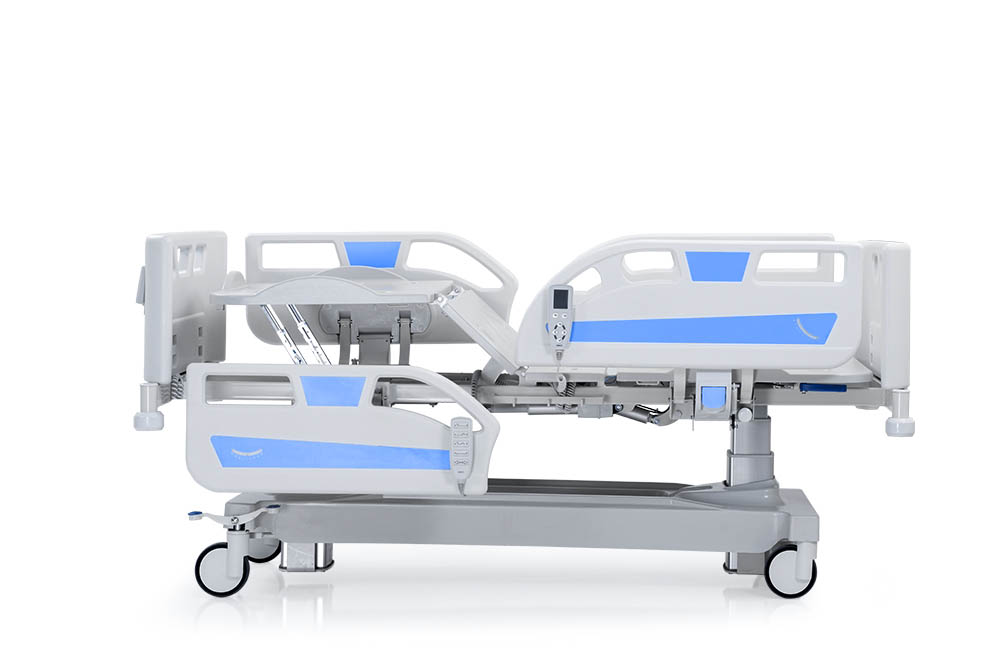

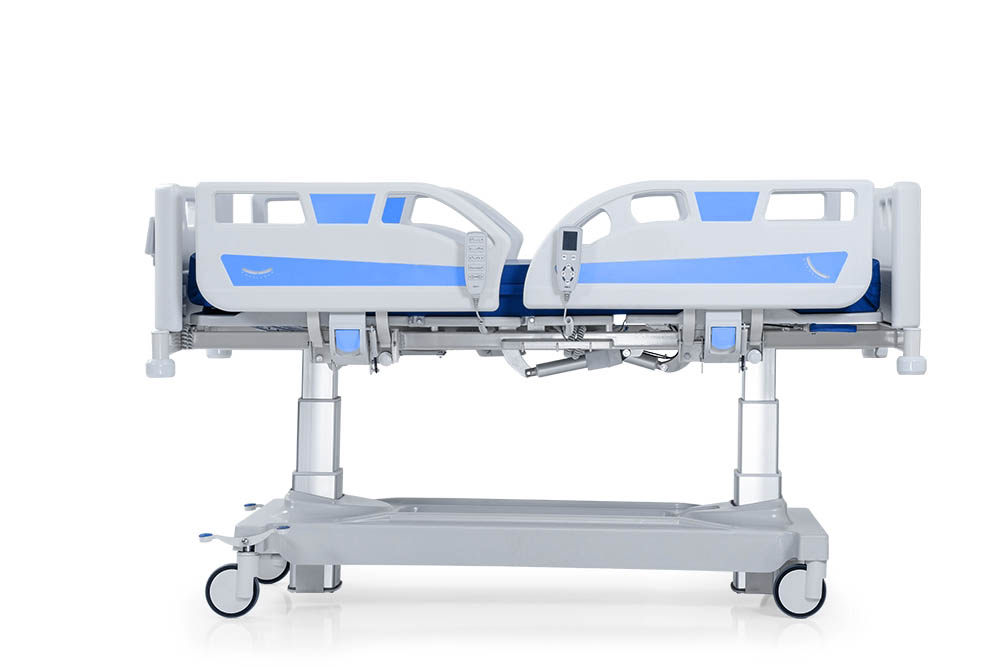

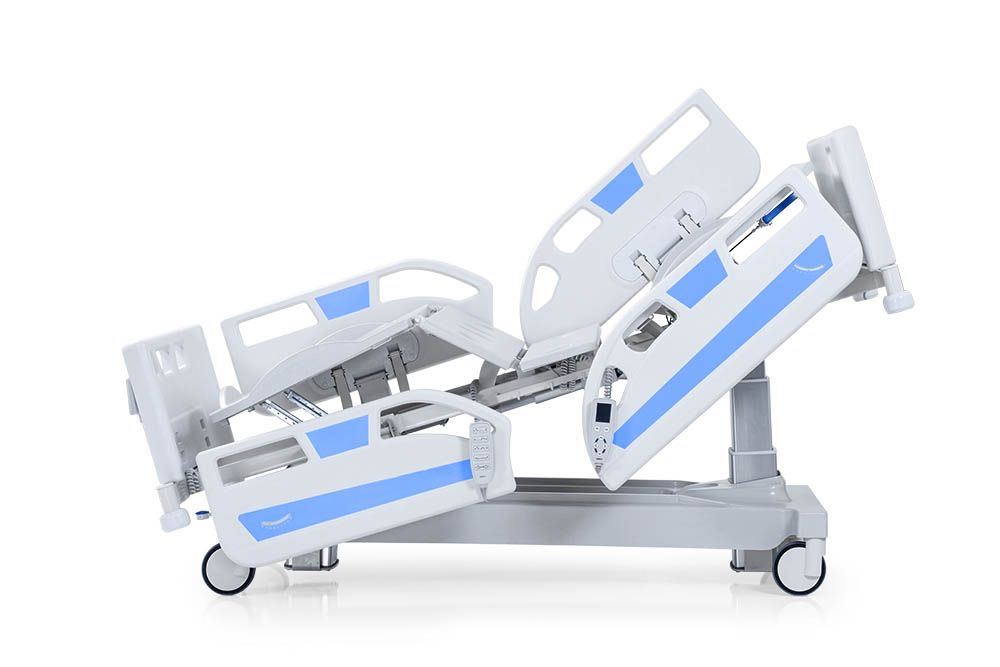

Electrical Intensive Care Bed, Columnar Motor

Overview

  • Integrated weighing scale (optional)

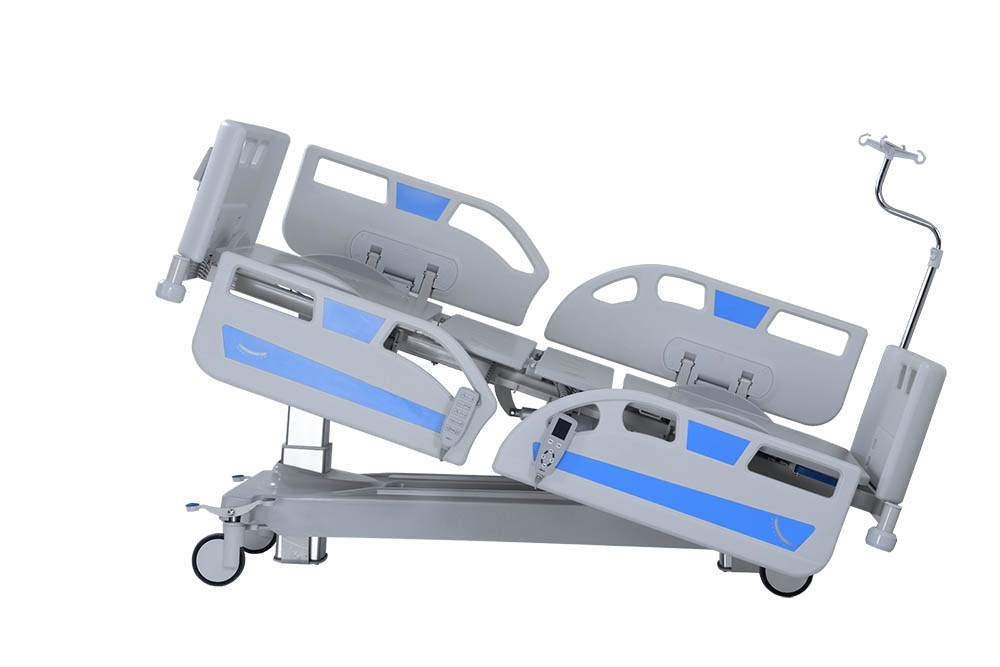

  • Electrically operated backrest, footrest, height, Trendelenburg and reverse- Trendelenburg movements
  • Electrically operated vascular, cardiac and fowler positions

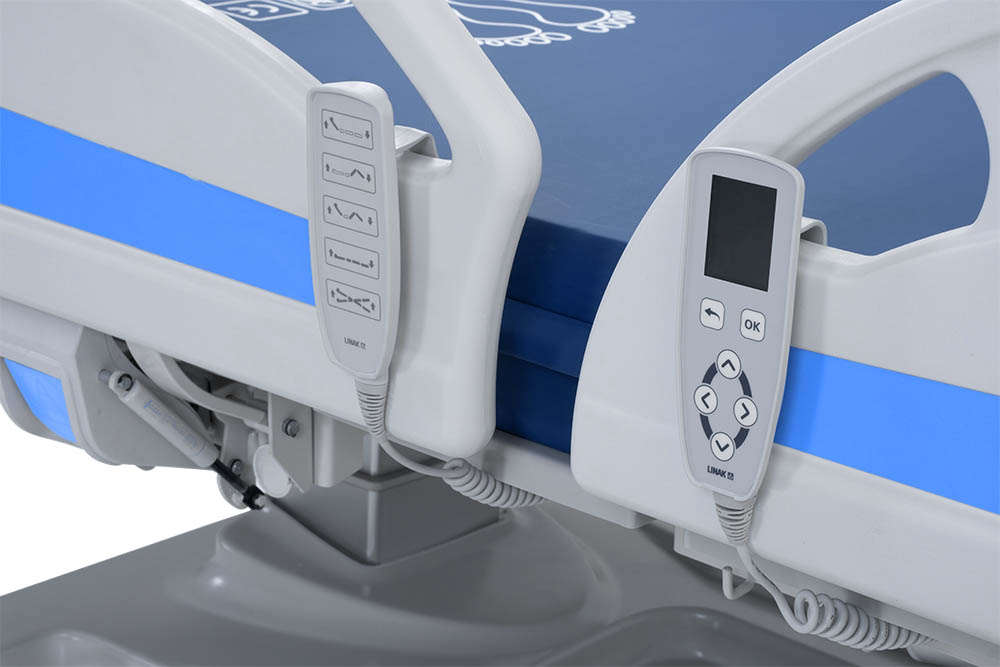

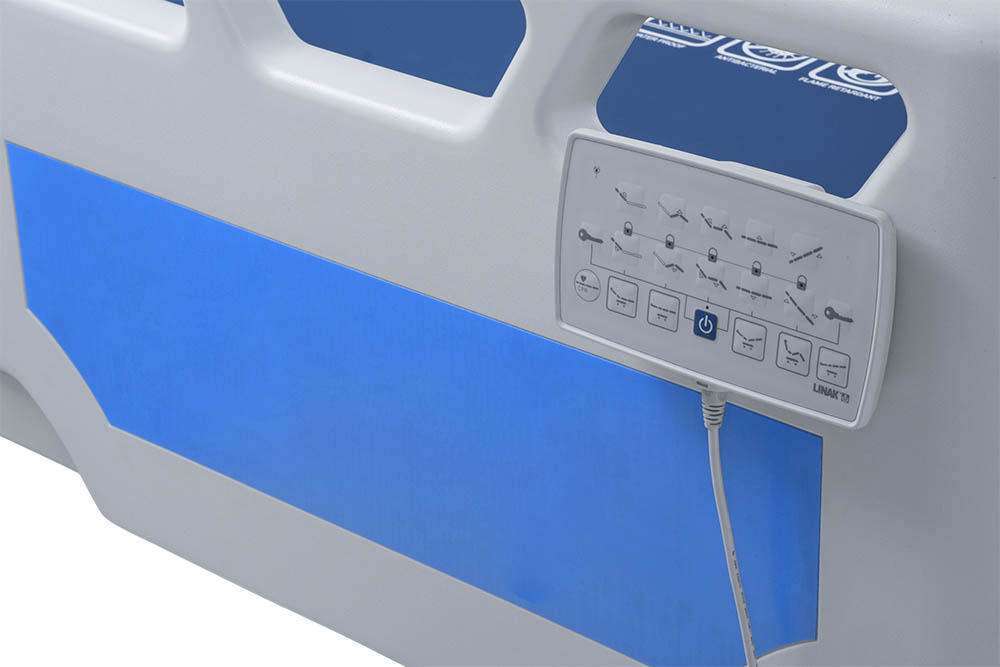

  • Patient control unit and nurse control unit
  • Auto CPR
  • Auto contour
  • Retracting backrest for pressure relief
  • Fold down PP side rails
  • Electrostatic powder coated metal frame
  • Easily removable ABS bed platform
  • Easily removable PP head and foot boards
  • Central and directional lockable castors

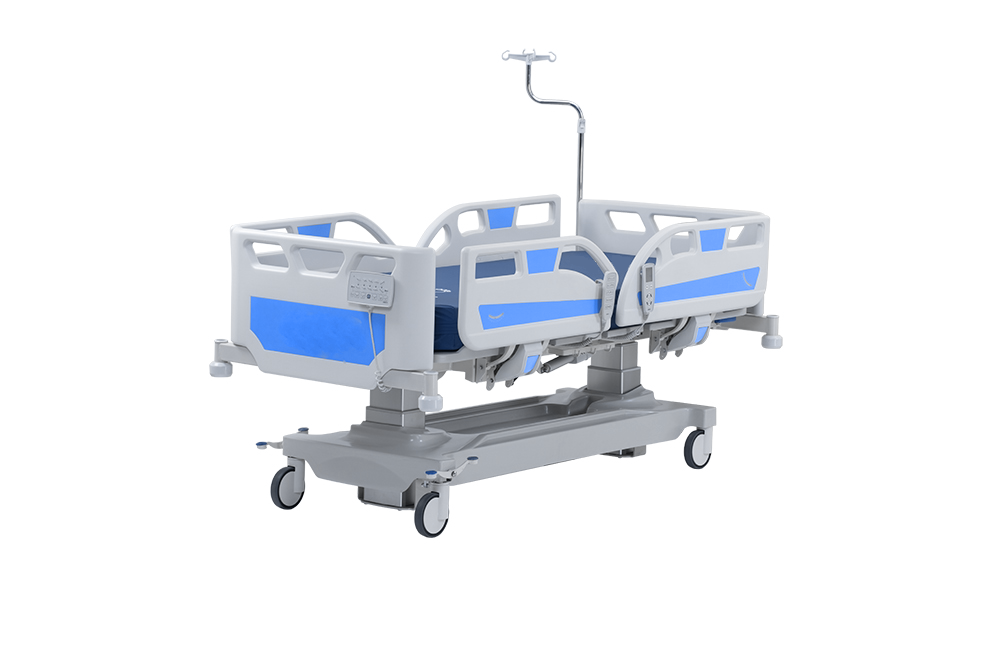

  • Height adjustable stainless steel IV pole
  • Easily adjustable knee break position
  • Plastic bumpers in the four corners of the bed
  • Battery backup

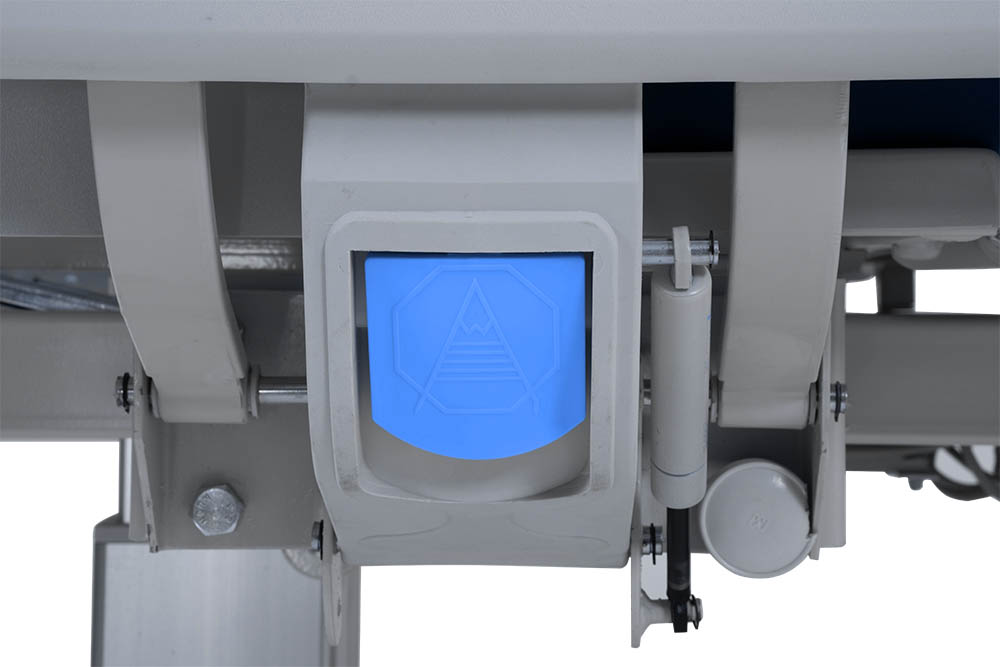

  • Dual sided manual CPR in the backrest
  • Accessories sockets at the bed corners
  • Angle indicator for backrest and Trendelenburg
  • One button Cardiac chair, shock position, semi- fowler position, bed exit position and examination position adjustments
  • Hand control unit is lockable to prevent any undesirable position
  • Bed extension up to 18 cm
  • X-Ray translucent backrest and Cassette holder
  • IPX4 standard electronic system
Category:

Description

Technical Data:

Overall Length: 212 cm

Overall Width: 102 cm

Height Range: 45-85cm

Trendelenburg: 0°-16°

Reverse Trendelenburg: 0°-16°

Backrest Angle (Max.): 70°

Legrest Angle (Max.): 40°

Castor Diameter: 15 cm

Under Bed Clearance: 15 cm

Safe Working Load: 250 kg

Electrical Data:

Power In: 1.5 A max. 230V AC 50-60 Hz

Electrical Shock Protection : Class I, Type B

Liquid Ingress Protection : IPX4 – IPX6

Batteries : 2x 12V Series, Connected, Sealed, Rechargeable, Lead / Acid gel,   12 amp hrs.
