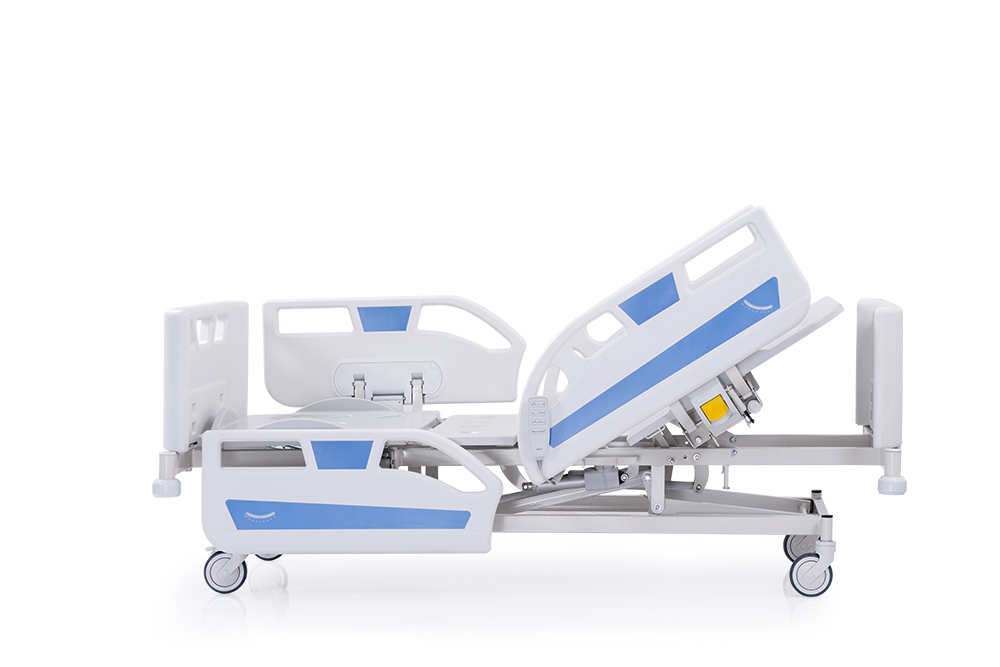

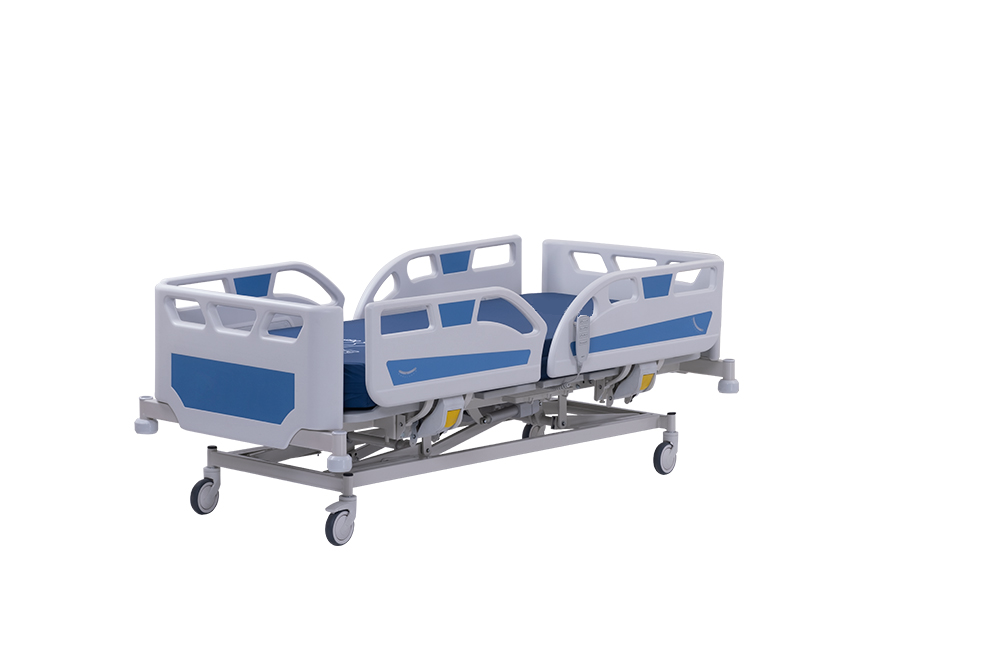

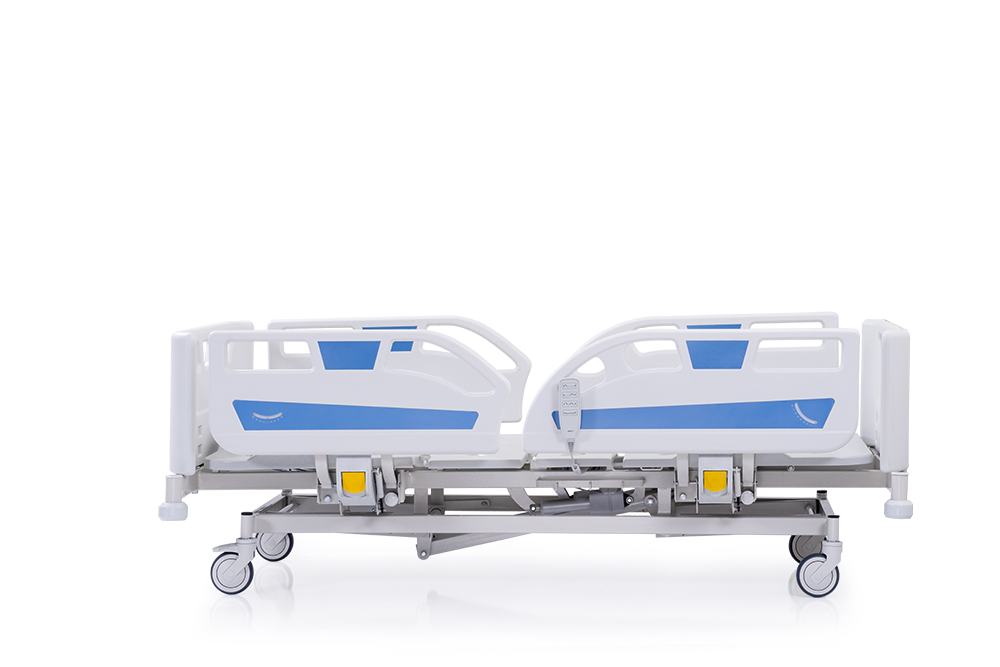

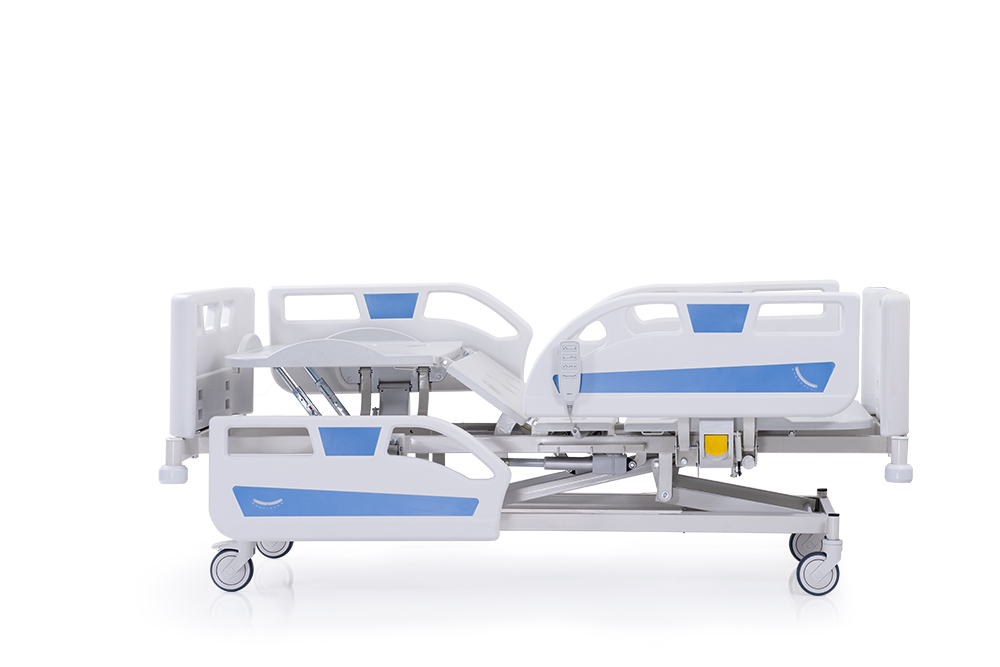

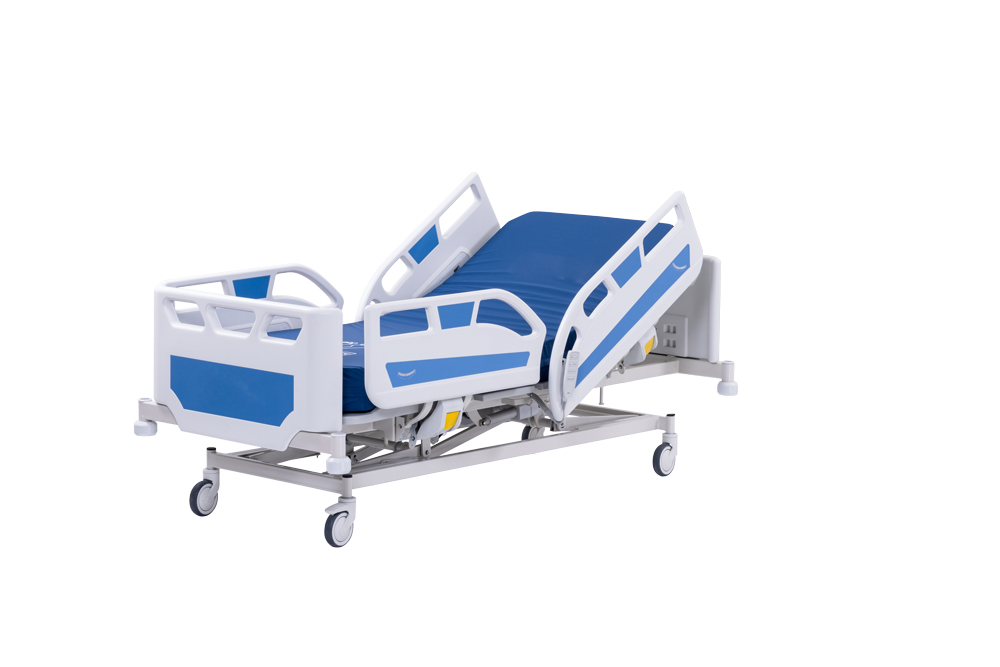

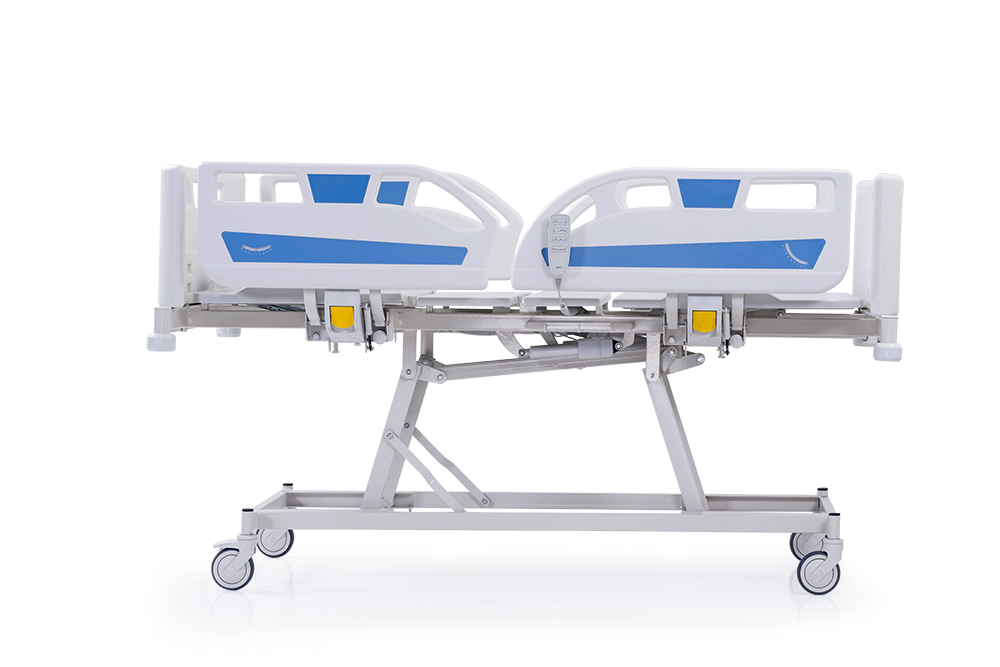

Electrical Patient Bed, Three Motor
Overview
- Electrically operated backrest, footrest and height movements
- Patient control unit
- Nurse control unit (optional)
- Auto contour
- Retracting backrest for pressure relief
- Fold down PP side rails
- Electrostatic powder coated metal frame
- Easily removable ABS bed platform
- Easily removable PP head and foot boards
- Two lockable castors
- Height adjustable stainless steel IV pole
- Easily adjustable knee break position
- Plastic bumpers in the four corners of the bed
- Battery backup (optional)
- Dual sided manual CPR in the backrest (optional)
- Accessories sockets at the bed corners
- Angle indicator for backrest and Trendelenburg
- Tendelenburg position by gas spring (optional)
- IPX4 standard electronic system
Description
Technical Data:
Overall Length: 212 cm
Overall Width: 102 cm
Height Range: 40-82 cm
Backrest Angle (Max.): 70°
Legrest Angle (Max.): 40°
Castor Diameter: 12,5 cm
Under Bed Clearance: 15 cm
Safe Working Load: 230 kg
Electrical Data:
Power In: 1.5 A max. 230V AC 50-60 Hz
Electrical Shock Protection : Class I, Type B
Liquid Ingress Protection : IPX4 – IPX6
Batteries : 2x 12V Series, Connected, Sealed, Rechargeable, Lead / Acid gel, 12 amp hrs.
